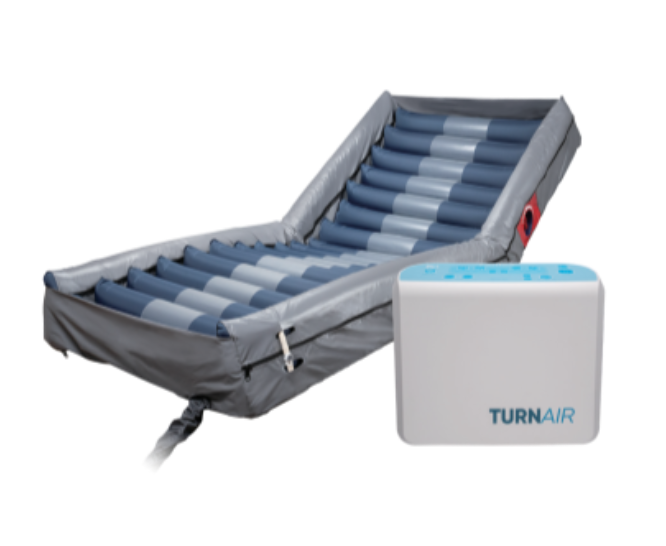

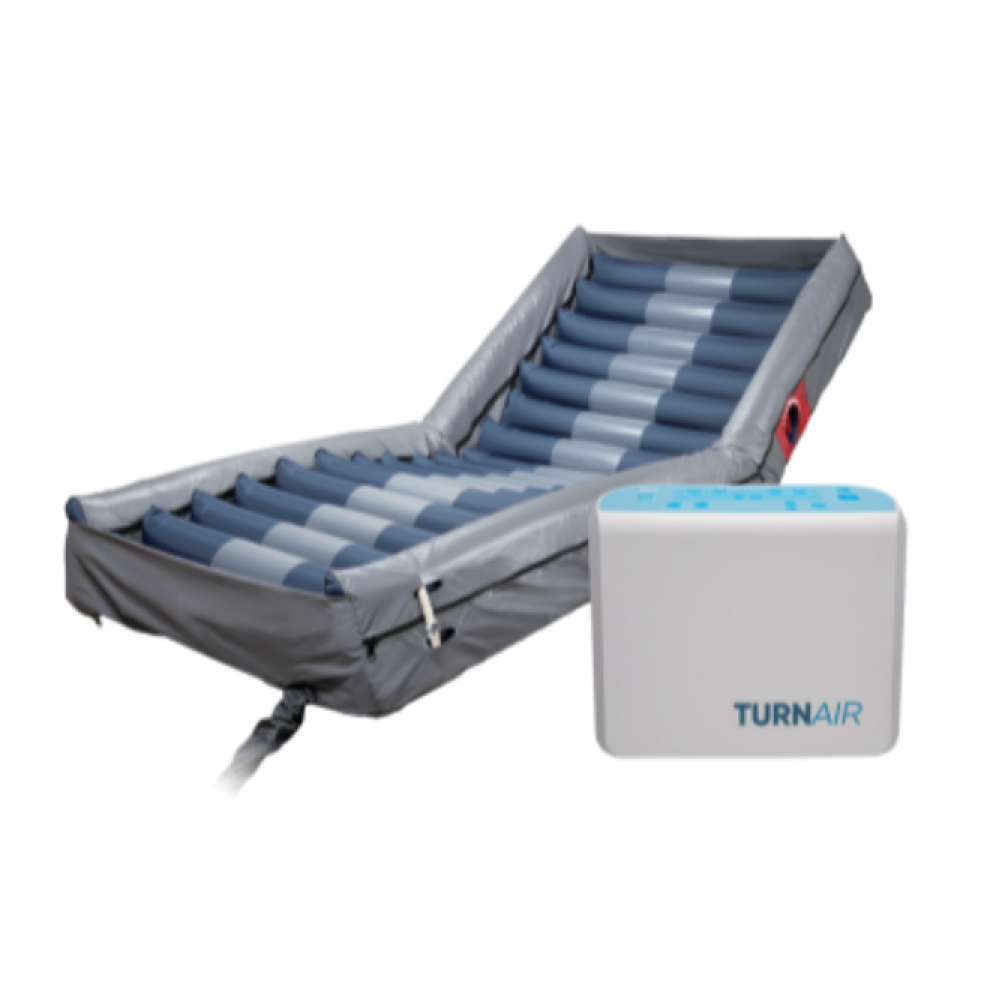

Carilex TurnAir Anti-Decubitus Air Alternating Pressure Mattress System
Product Description
Carilex TurnAir
Revolutionize Bedridden Care with Advanced Turning Mattress
Bedridden patients are among the most vulnerable groups due to restricted mobility, which can lead to pressure injuries and various potential respiratory complications.
Carilex revolutionizes bedridden care by providing an auto-turning feature with adjustable angles of 20–30 degrees and selectable cycle times. With three distinct modes — Turn Full, Turn Left and Turn Right — the system stimulates blood flow to deliver oxygen and nutrients to body tissues and skin, effectively relieving pressure on vulnerable areas.
TurnAir with auto-turning benefits caregivers in their daily repositioning tasks and helps prevent pressure injuries in adults. It also reduces nursing time per patient and supports improvements in patient mobility. Carilex Medical
THE TURNAIR POWER UNIT WITH IPS TECHNOLOGY
The IPS Technology, Intelligent Pressure Sensing Technology, responds to patient movements on mattress by automatically adjusting internal mattress pressure, which allows TurnAir to regulate airflow and continuously provide a total envelopment for our patients. Carilex is the first brand in the industry to master IPS. This gives us more experience and vast knowledge in the technology that is years ahead of our competitors.
THE TURNAIR MATTRESS
TurnAir mattress replacement system equipped with side air bolsters to maintain the patient's position during auto-turning. This significantly reduces the physical burden of manual repositioning for caregivers.

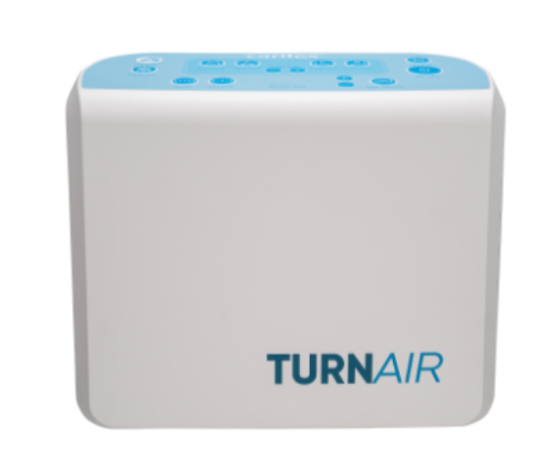

TurnAir Power Unit with IPS Technology
- IPS Technology (Intelligent Pressure Sensing Technology) responds to patient movements on the mattress by automatically adjusting the internal mattress pressure, allowing TurnAir to regulate airflow and continuously provide total envelopment for patients. Carilex Medical

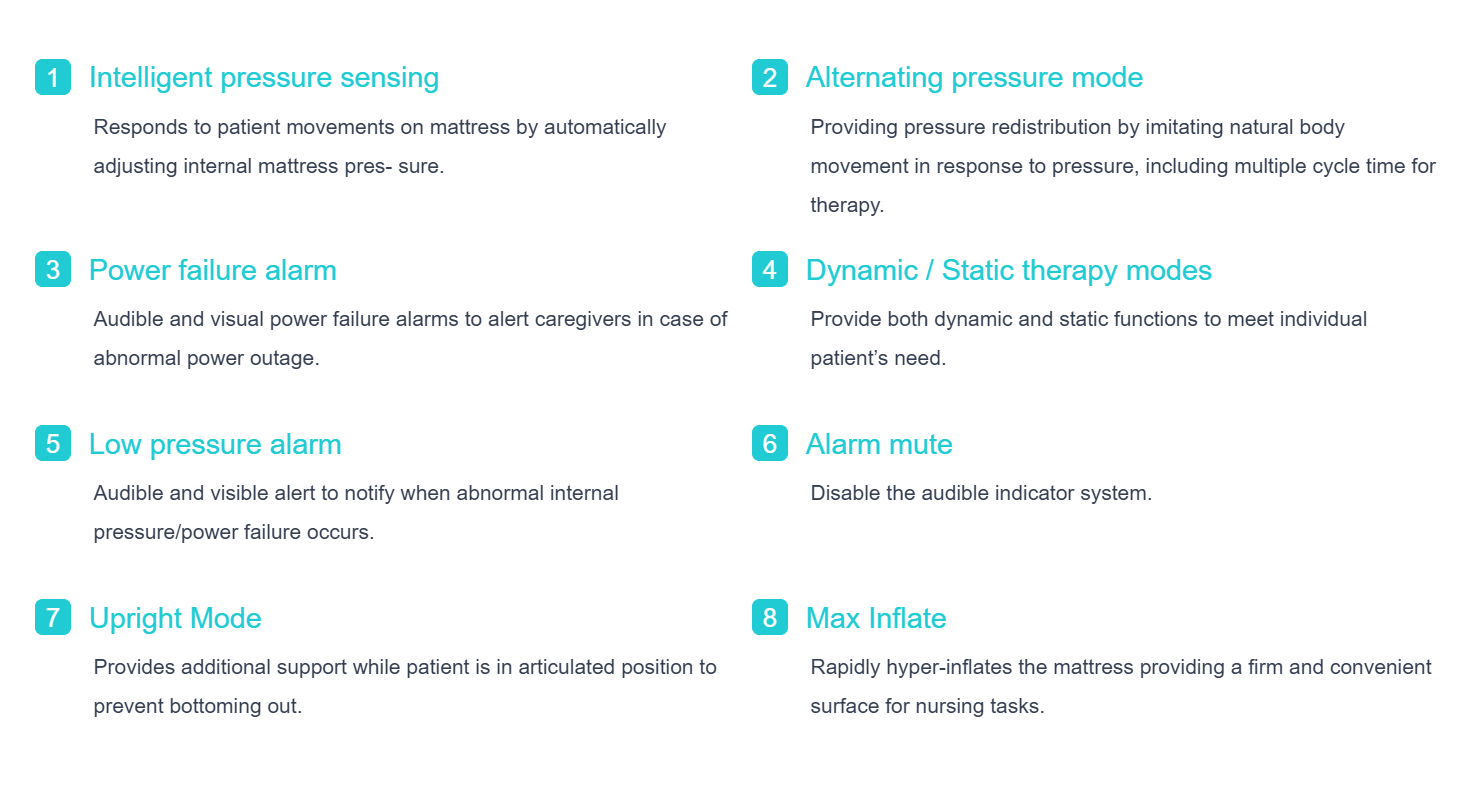

Intelligent Pressure Sensing
- Responds to patient movements on the mattress by automatically adjusting internal mattress pressure.
Alternating Pressure Mode
- Provides pressure redistribution by imitating natural body movement in response to pressure, including multiple cycle times for therapy.
Power Failure Alarm
- Audible and visual power failure alarms alert caregivers in case of abnormal power outage.
Dynamic / Static Therapy Modes
- Provides both dynamic and static functions to meet individual patient needs.
Low Pressure Alarm
- Audible and visible alert to notify when abnormal internal pressure/power failure occurs.
Alarm Mute
- Disables the audible indicator system.
Upright Mode
- Provides additional support while the patient is in an articulated position to prevent bottoming out.
Max Inflate
- Rapidly hyper-inflates the mattress, providing a firm and convenient surface for nursing tasks. Carilex Medical
TurnAir Mattress
- The TurnAir mattress replacement system is equipped with side air bolsters to maintain the patient's position during auto-turning. This significantly reduces the physical burden of manual repositioning for caregivers. Carilex Medical

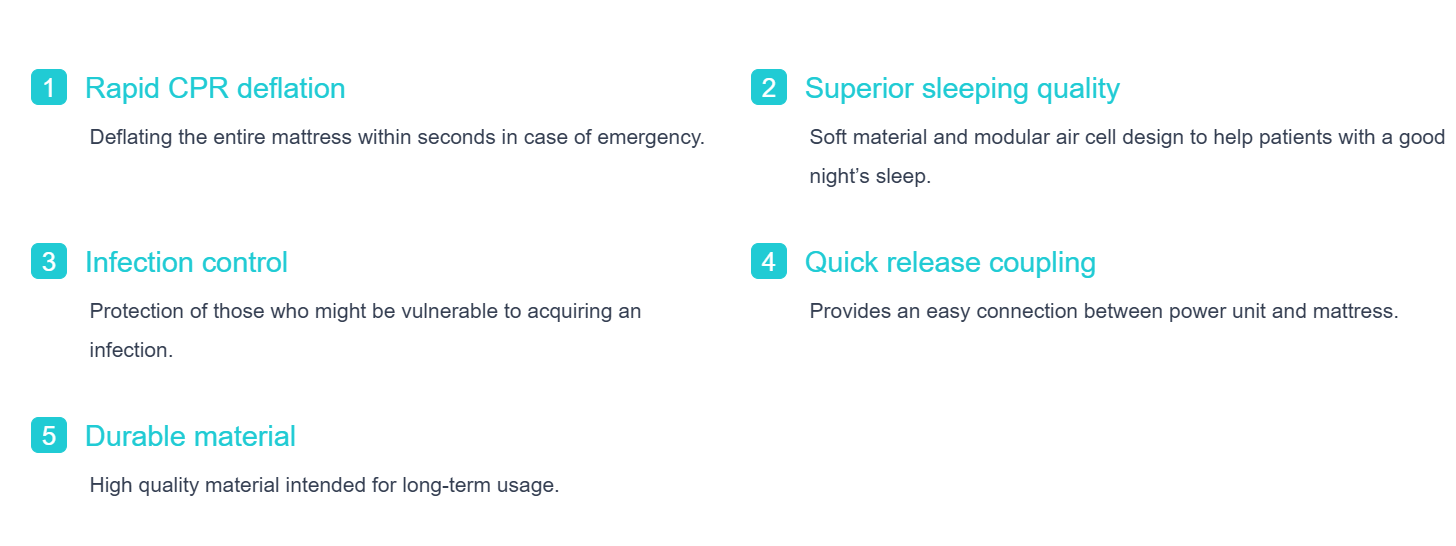

Rapid CPR Deflation
- Deflates the entire mattress within seconds in case of emergency.
Superior Sleeping Quality
- Soft material and modular air cell design help patients achieve a good night's sleep.
Infection Control
- Protection for those who might be vulnerable to acquiring an infection.
Quick Release Coupling
- Provides an easy connection between the power unit and mattress.
Durable Material
- High-quality material intended for long-term usage. Carilex Medical

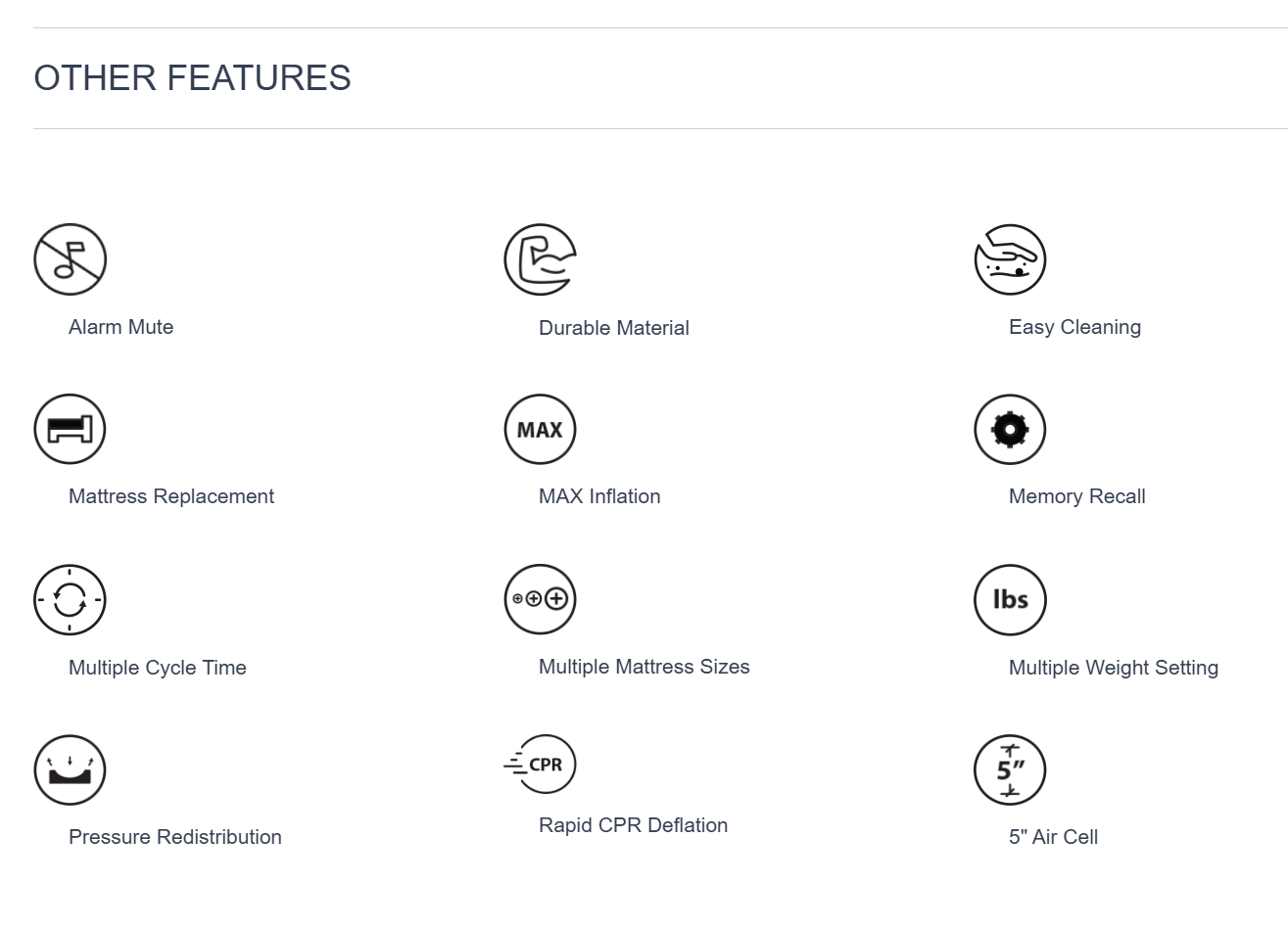

Other Features
- Alarm Mute • Durable Material • Easy Cleaning • Mattress Replacement • MAX Inflation • Memory Recall • Multiple Cycle Time • Multiple Mattress Sizes • Multiple Weight Setting • Pressure Redistribution • Rapid CPR Deflation • 5" Air Cell Carilex Medical
Technical Data
- Power Unit Model: SR377
- Power Input: 220–240Vac, 50/60Hz, 5A
- Power Consumption: Max. 410W
- Power Unit Weight: 5.5 kg (12.2 lb)
- Mattress Weight: 10 kg, 11 kg, 12 kg, 12.5 kg, 13.5 kg, 14 kg, 15 kg
- Power Unit Dimensions (W × H × D): 14" × 12" × 7" (36 × 30 × 17 cm)
- Mattress Set Size: 36" × 80" × 5" (90 × 200 × 13 cm)
- Mattress Set Size: 42" × 80" × 5" (107 × 200 × 13 cm)
- Other Sizes: Upon request
- Agency Approval: IEC/EN 60601-1, AS/NZS IEC60601.1, IEC/EN 60601-1-2, IEC/EN 60601-1-11, IEC 60601-1-8
- Operating Temperature: 5°C to 40°C (41°F to 104°F)
- Operating Humidity: 15% to 90%
- Transportation & Storage Temperature: -25°C to 70°C (-13°F to 158°F)
- Transportation & Storage Humidity: 0% to 90%
- Weight Capacity: 180 kg (400 lbs)
| SR377 | Carilex TurnAir Anti-Decubitus Air Alternating Pressure Mattress System | Email for quotation |
